Stone Coated Metal Roof Tiles

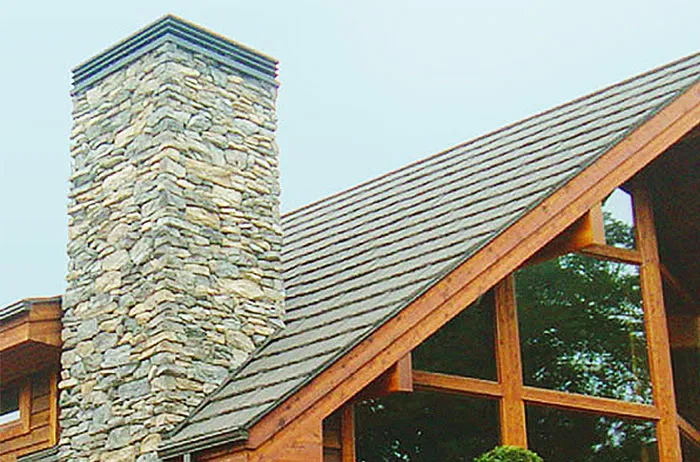

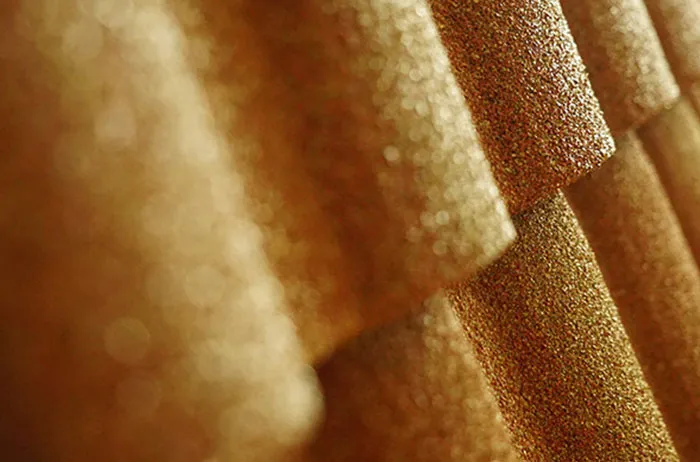

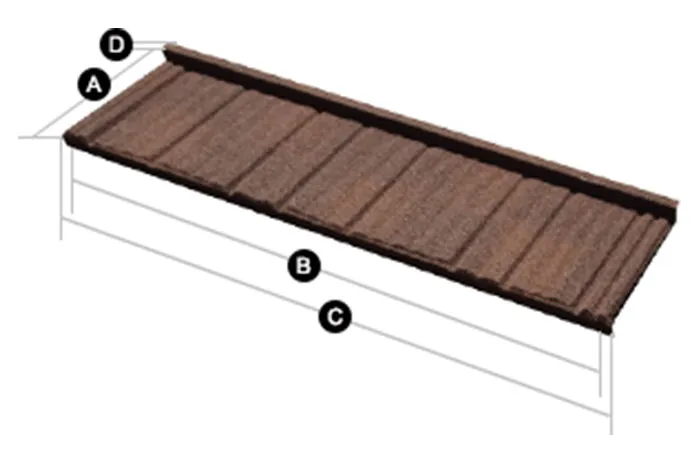

Taper-Sawn Shake (รุ่นเรียบ / 2-18”)
✔
Panel Size : 16-1/2 "X 53-1/2“ (420mm X 1,340mm)
✔
Installed Exposure : 14-1/2" X 53-1/5“ (370mm X 1,350mm)
✔
Panels per Square : 2.00 tiles/mm
✔
Installed Weight : 115 lbs/sq (5.6 kg/mm)

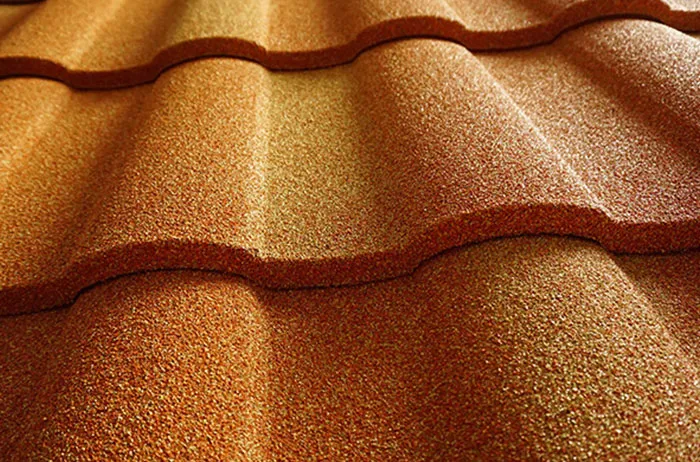

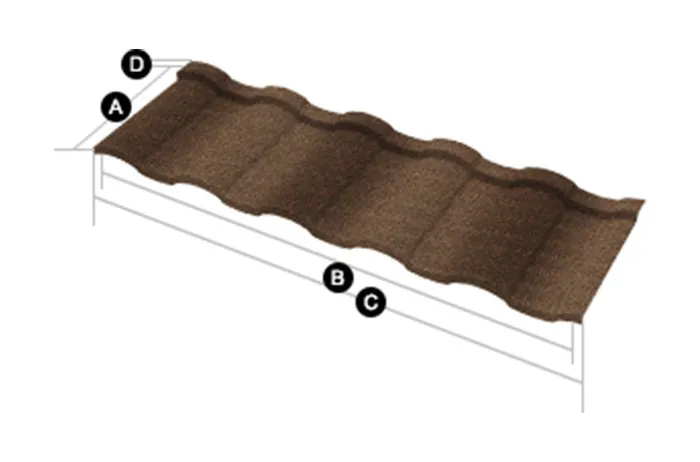

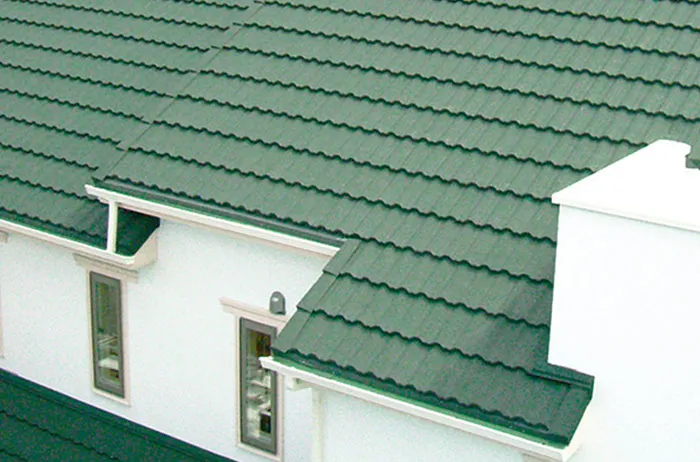

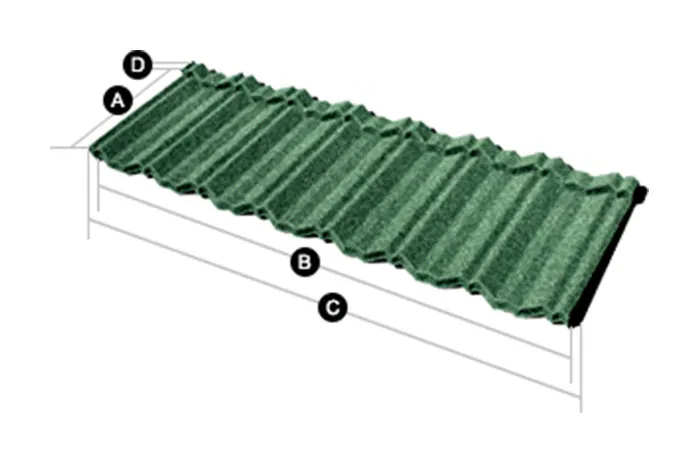

DS Roman (A) 370mm(B) 1,253mm(C) 1,322mm(D) 25mm
✔
Panel Size : 16.73" x 52.05" (425 mm x 1,322 mm)
✔
Installed Exposure : 14.57" x 49.33" (370 mm x 1,253 mm)
✔
Panels per Square : 2.10 tiles/mm
✔
Installed Weight : 122.6 lbs/sq (5.96 kg/mm)

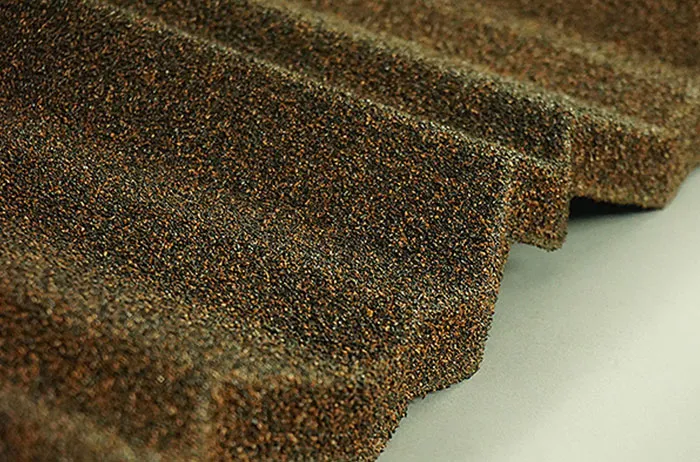

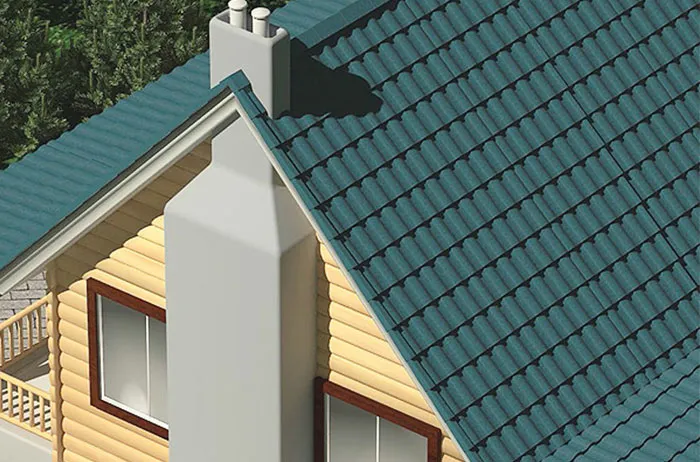

DS Classic
✔
Panel Size : 16-1/2" x 52-3/4" (420 mm x 1,340 mm)
✔
Installed Exposure : 14-1/2" x 49-4/5" (370 mm x 1,265 mm)
✔
Panels per Square : 2.13 tiles/mm
✔
Installed Weight : 122.6 lbs/sq (5.96 kg/mm)

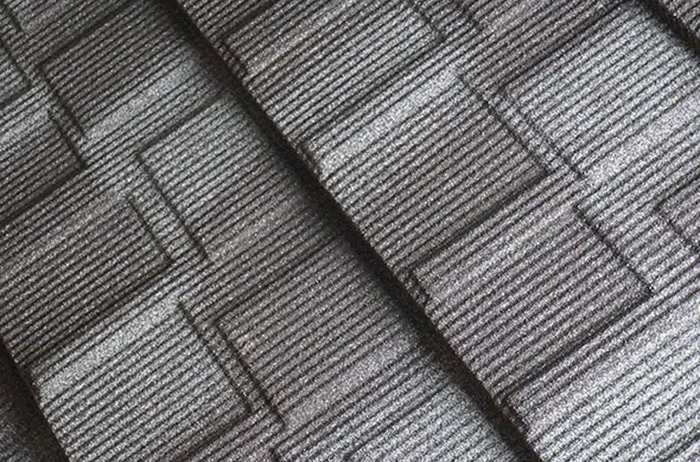

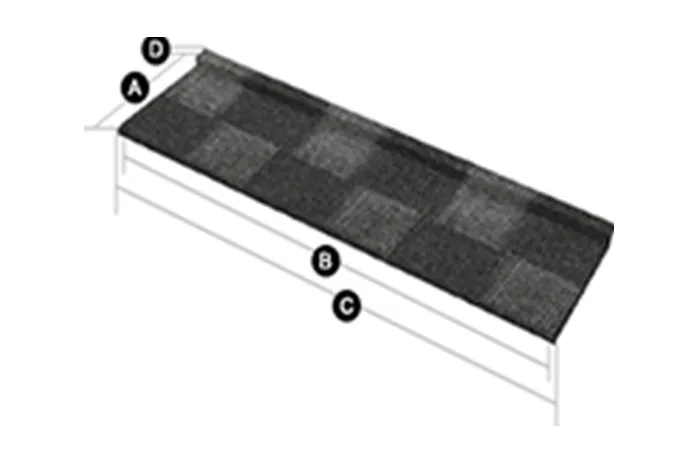

DS Shingle
✔
Panel Size : 16-1/2" X 53-1/5“ (420mm X 1,350mm)
✔
Installed Exposure : 14-1/2" X 52-2/5“ (370mm X 1,330mm)
✔
Panels per Square : 2.00 tiles/mm
✔
Installed Weight : 115.0 lbs/sq (5.60 kg/mm)
